DA.120 DEDICATED POWER SUPPLY

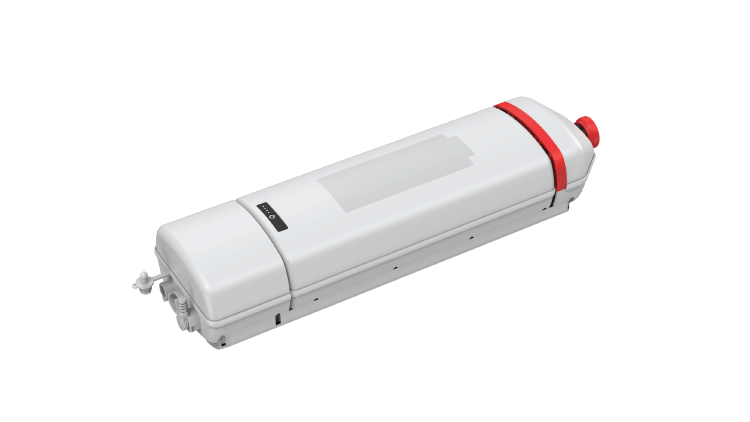

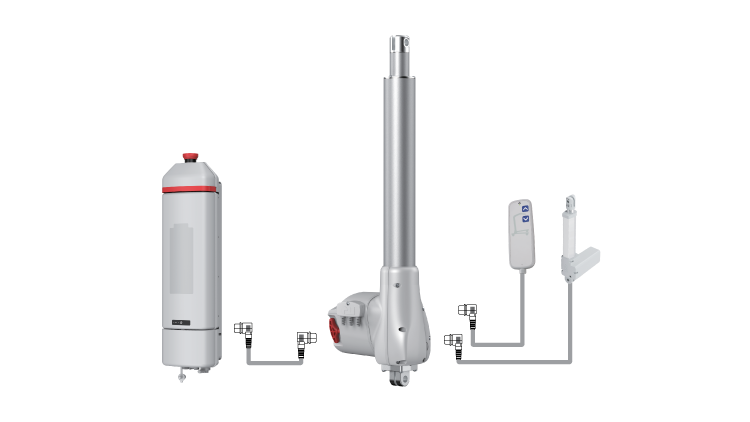

PP.120-36 is a power supply unit designed specifically for powering the DA.120 actuator. This robust unit features integrated status LEDs and an Emergency Stop button for enhanced safety. It includes connectors for the DA.120 and an external charger, offering a choice between an economical slow-speed charger and a high-speed charger for quicker charging times.

The power supply is available in two battery options: a 36V/4.5Ah lead acid battery or a lightweight 36V/2.5Ah lithium-ion battery (under 100Wh for easy transport). Higher lithium-ion battery capacities can be provided upon request.

With an output voltage of 36VDC, the PP.120-36 meets UN38.3 standard, IEC 62133, UL1642, and UL2054 certifications, ensuring reliability and safety in all applications. Upgrade your power solutions with the PP.120-36.
